Wet Application Tube Cleaners / ELECTRIC TUBE CLEANERS : ('BPC-4' SERIES)

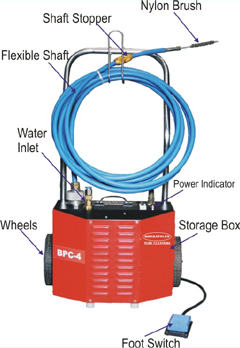

In Electric Tube Cleaner, the brushes or other cleaning tools are rotated through a tube at tip of flexible shaft. Simultaneously water gets injected, hence loosen deposits leaving tubes cleaned. Flexible shafts ensure use in bent tubes.
All models consist of tool storage box, single direction foot switch, mobile dolly.
2 direction foot switch is optional.
All units are available with following specifications :
115 v 60 Hz, 115 v 50 Hz - 9 Amps
220 v 60 Hz, 220 v 50 Hz - 4.5 Amps
While ordering, please mention electric specifications.

Model No
Motor
HP.
kW
Tube ID
Inch
Mm.
Speed
RPM
BPC-2
0.50
0.40
1/4 -1
6.4 - 25.4
870
BPC-3
0.75
0.60
1/4 -1
6.4 - 25.4
870
BPC-4
1.00
0.75
1 & up
25.4 & up
1740
BPC-5
2.00
1.50
1 & up
25.4 & up
1740

Electric Tube Cleaners

All units available with various electrical specification: 115v 60 Hz, 115v 50Hz - 9 Amps.220 v 60 Hz, 220v 50Hz -4.5 Amps.


PORTABLE TUBE CLEANER / 'BPC-P' SERIES : Wet Application Tube Cleaners

BPC- P is a portable machine which can be carried by technician on the move. Flexible shaft rotates at speed of 1740 rpm and water gets injected simultaneously through the nylon casing to
the cleaning tool. As the tool removes the deposits, the water flow flushes them out. A solenoid valve ensures that water flows only when machine is running.
All units are available with following specifications :
115 v 60 Hz, 115 v 50 Hz - 9 Amps
220 v 60 Hz, 220 v 50 Hz - 4.5 Amps

While ordering, please mention electric specifications.

Model No.
Motor
HP.
kW
Tube ID
Inch
Mm.
Speed
RPM
BPC-P
0.50
0.40
1/4 -1
6.4 - 25.4
1440
Portable Tube Cleaner

All units available with various electrical specification: 115v 60 Hz, 115v 50Hz - 9 Amps.220 v 60 Hz, 220v 50Hz -4.5 Amps.
